Do you still remember the popular renovation project featuring the movable floor plates? The same architect has a new project in which he renovated four container boxes and built an amazing house.
大家还记得去年刷爆朋友圈利用机械车库原理将“北京二环,20平变身120平”的设计师吗?这次他再次将80后创业家的集装箱住宅华丽大变身。

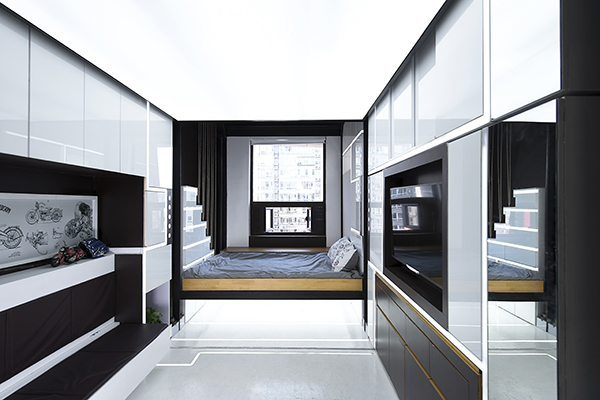

The smart transformable house in Beijing / 百变智居1.0:北京二环的爆改
The container house / 百变智居2.0:变形集装箱!
Project Background
背景
The client is a young
man who just started his 3D printing business in Shanghai. By using
3D printing technology, now everyone can design jewelry.
高智商海归以3D打印首饰在上海创业, 通过最新的3D技术,实现普通人的珠宝设计梦想。

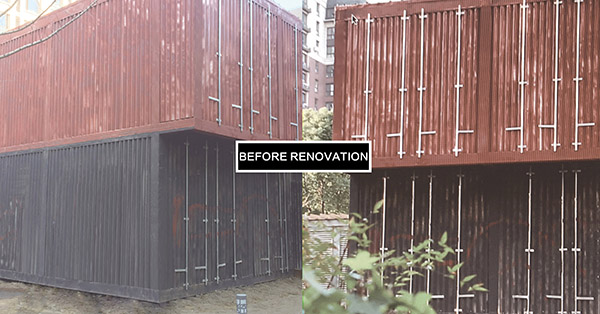

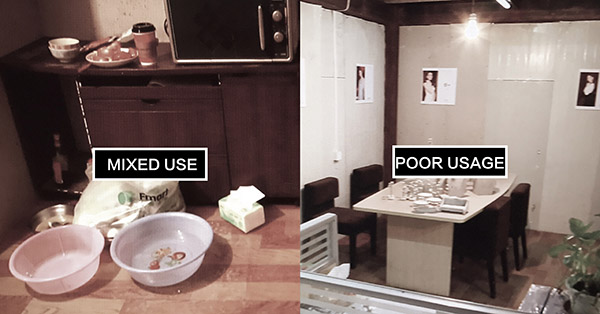

Cannot afford the high rent in a normal office building in the city, the talented young man rent 4 container boxes for a very cheap price and used them as his office and home.
这样一个拥有奇思妙想的年轻人面对捉襟见肘的资金压力,特立独行的他租用了四个集装箱,作为了自己的家和公司。

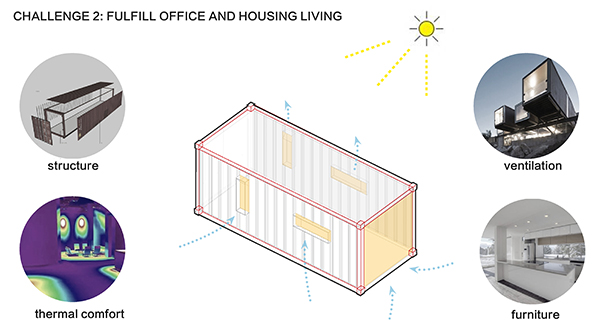

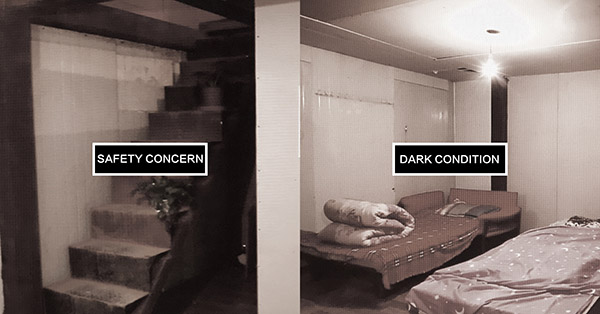

The container box is very
flexible and solid, which appeals to young entrepreneuers. However, it is quite dim during the day and cold winter. It is also not very soundproofing.
集装箱空间灵活而坚固,符合创业者的精神,却昏暗不保温,漏风而不隔音。

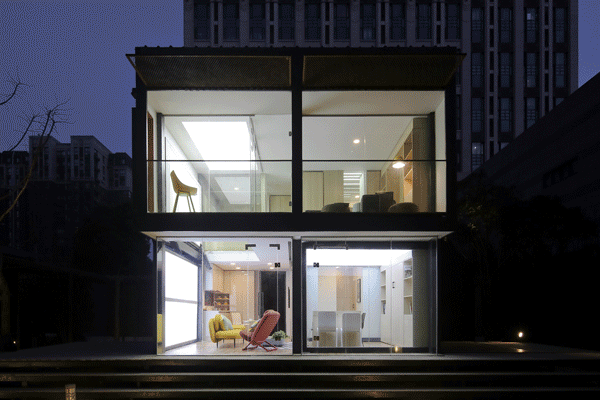

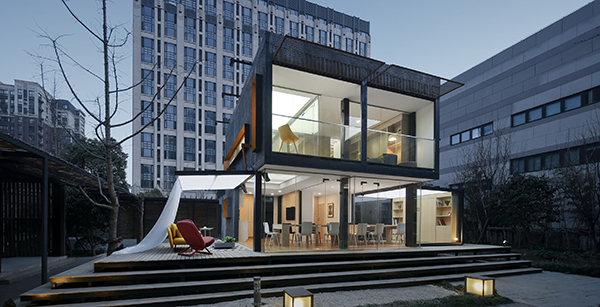

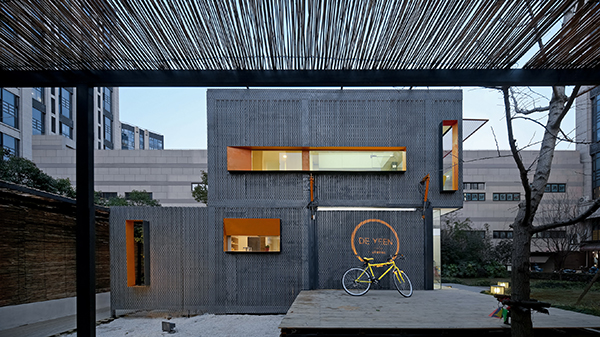

Container House!
百变智居2.0

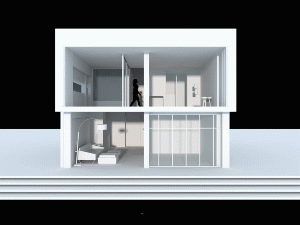

Design strategy: exchange time for space
设计策略:“以时间换空间”

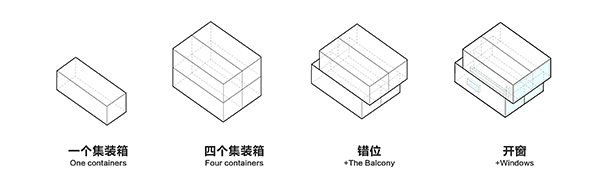

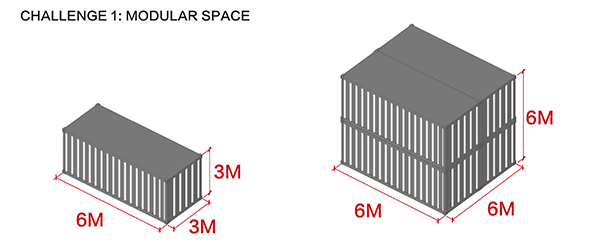

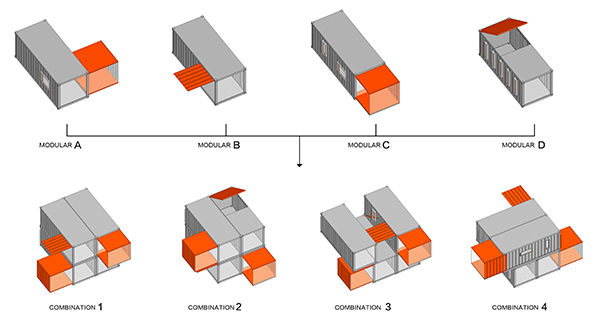

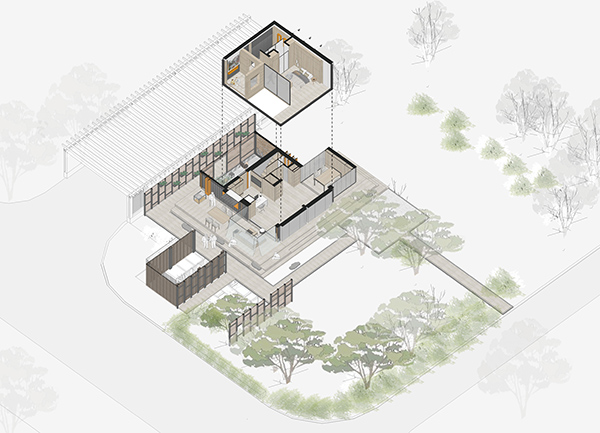

Because of the transformable characteristic of container boxes, we arrange the boxes in different ways. In the future, we can even build buildings like playing Lego!
以集装箱易于变形的特点,对4个集装箱重新组织。未来通过模块化的预制,用搭积木的方式造房子!
This is a new way of living and working. The space inside the container can be used for different functions, mainly living, working and entertainment.
创新地将居住与办公融为一体,相同的空间里根据时间不同,演化出不同功能活动。家庭×办公×聚会三位一体的生活方式,符合创业业主的生活方式。

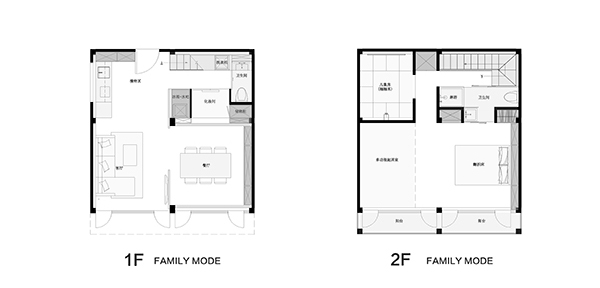

1 Living Mode
家庭模式

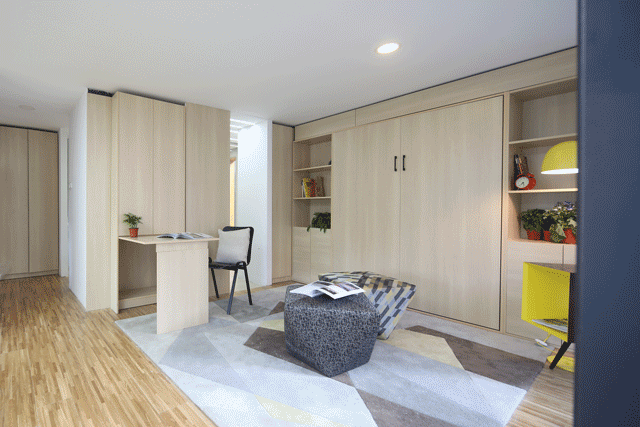

The living mode package comes with a loft-like dinning room, a bedroom made up of folding bed, kitchen and a playground for kids.
在家庭模式中,建筑的主要功能对应家居使用,拥有挑高的客厅空间,翻折床面形成的卧室空间,完善而实用的厨房与餐厅,供儿童玩耍的榻榻米空间。

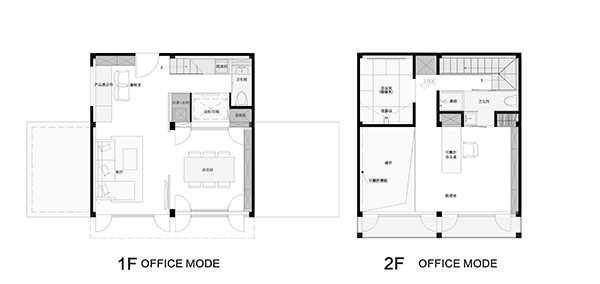

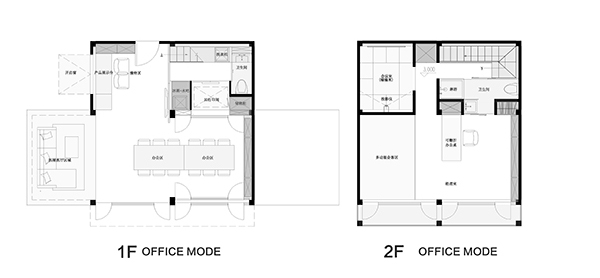

2 Working Mode
办公模式
For the working mode, all the design have to be reset according to different functions.

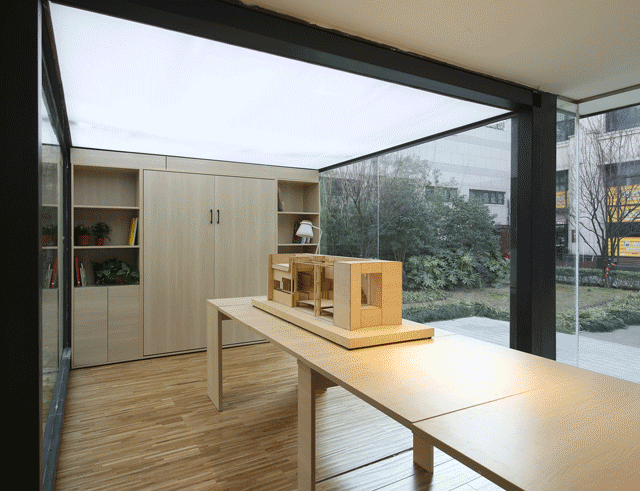

自由移动的隔墙,分割出会客空间和办公空间。拉伸出外墙体块,结合2m变20m的超长桌子,将餐厅变身为workshop。

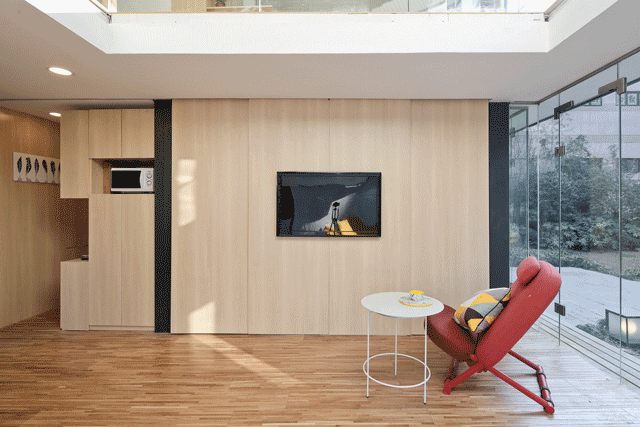

The movable wall / 活动隔墙隔出不同功能

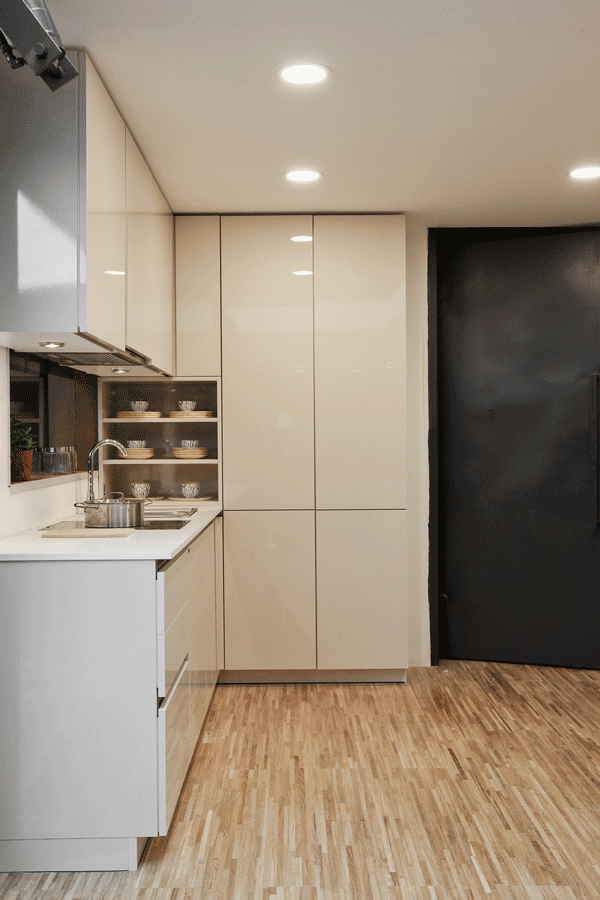

The hidden table in the kitchen can be pulled out and used as a reception desk.
拉出的厨房桌面,将厨房变身为前厅接待。

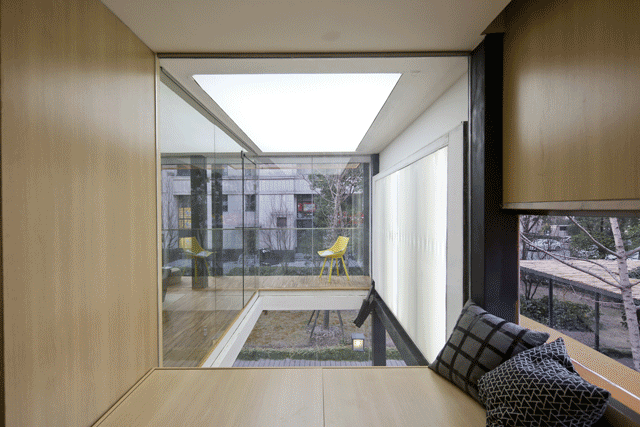

Put down the folded floor on the upper level, you can get a meeting room.
二层翻折下的楼板,形成了一个会客空间。

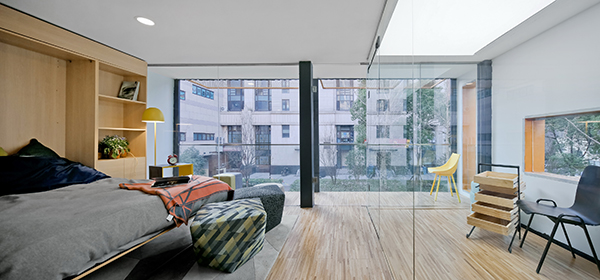

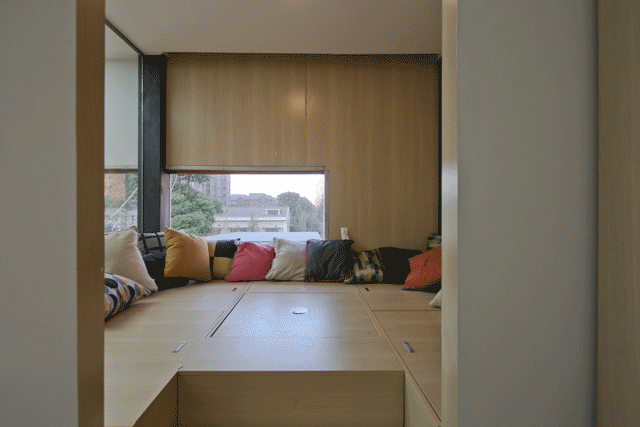

The bedroom, with an ascending desk, can also be used as a meeting room.
将卧室的床收起,方向翻折长条桌,形成缪庆个人的办公空间。榻榻米中心的木板向上升起,成为团队头脑风暴的场所。

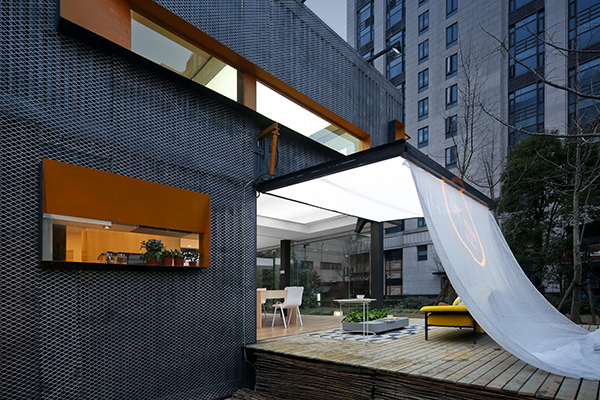

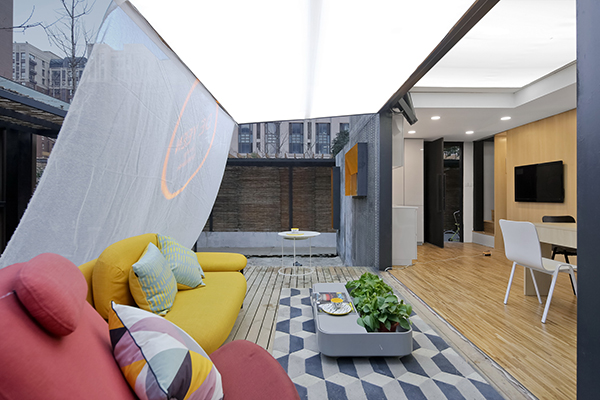

The wall on one side of the container box can be pulled up as the ceiling of the house's"grey space"--- an outside meeting place.
向外翻起的墙体,形成了室外的一个灰空间会客厅。

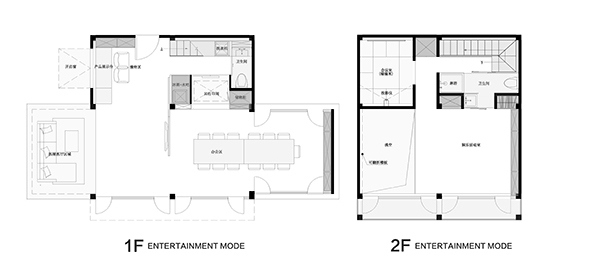

3 Entertainment Mode
聚会模式

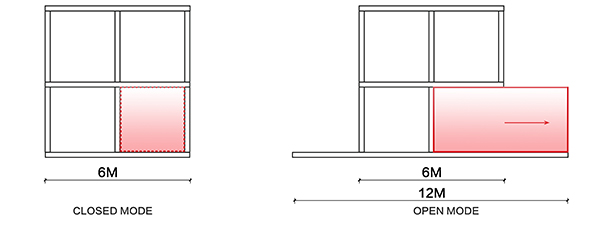

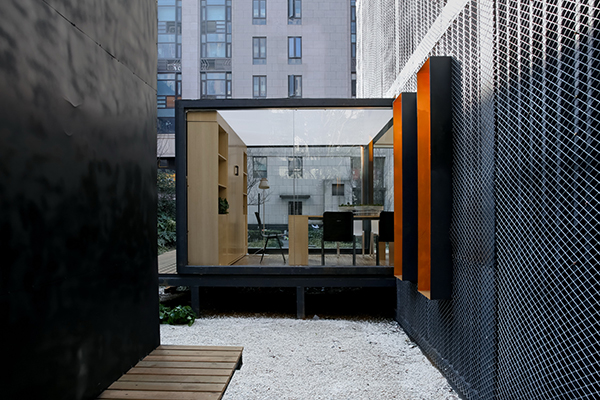

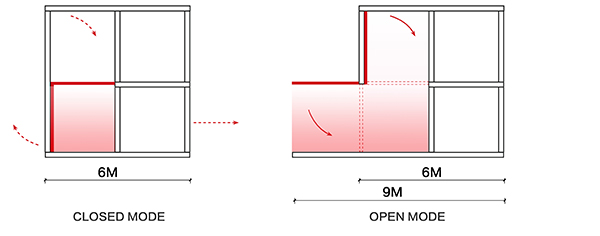

You can pull out a hidden box to make a room for party. The folding bed can be used as an extra bed to accomodate more guests.
在周末与朋友的聚会中,通过打开墙体与拉出的箱体,与好朋友一起烧烤party。同时客厅中隐藏一个翻折床板,为好朋友提供多人居住。
工业预制

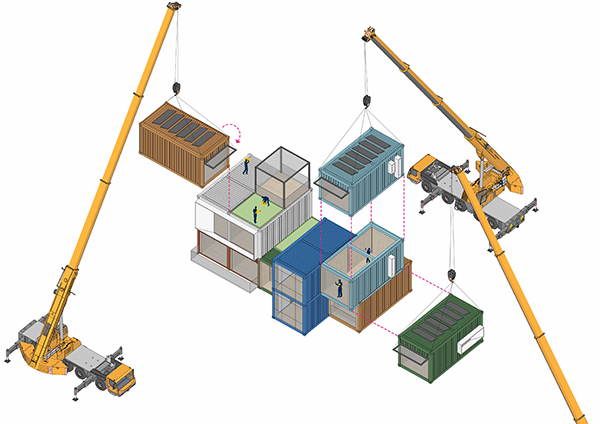

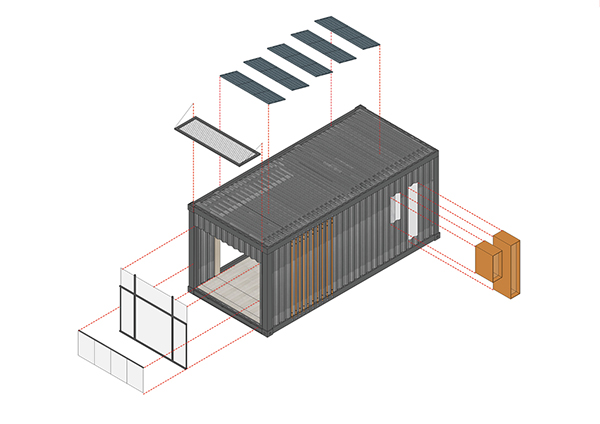

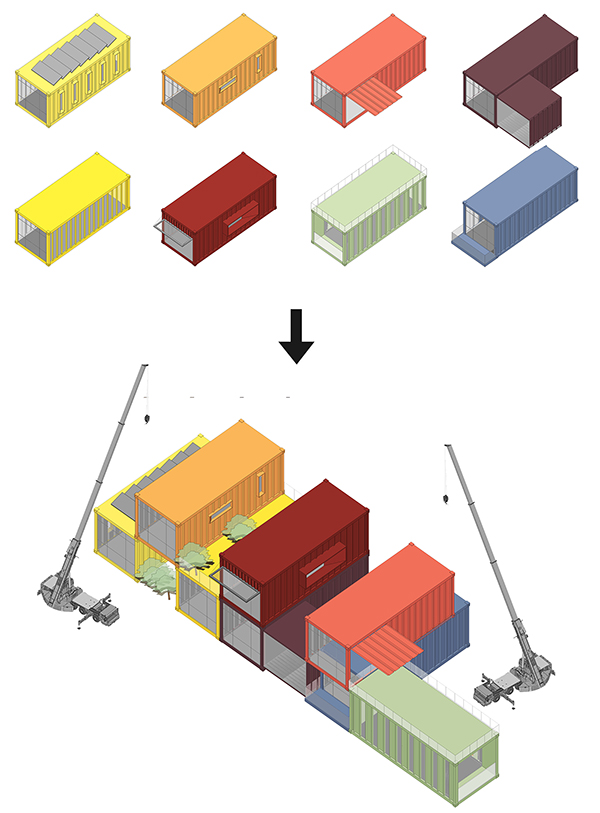

The components can be pre-made in the factory and sent to the site. This project can be an inspiration for future use.
通过工业化的预制,运送构建到现场施工安装,装配可变的建筑构件。未来也可多个组合,形成多种可能性。

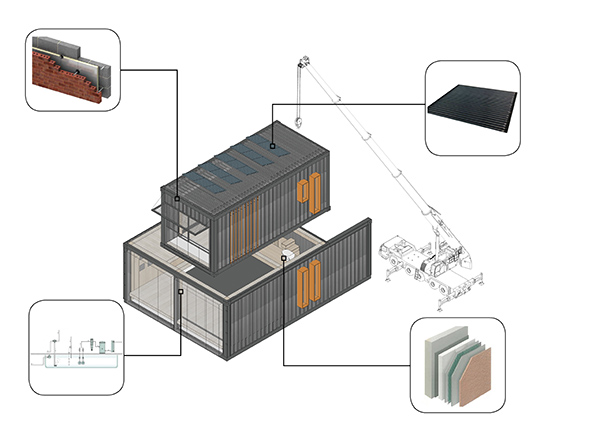

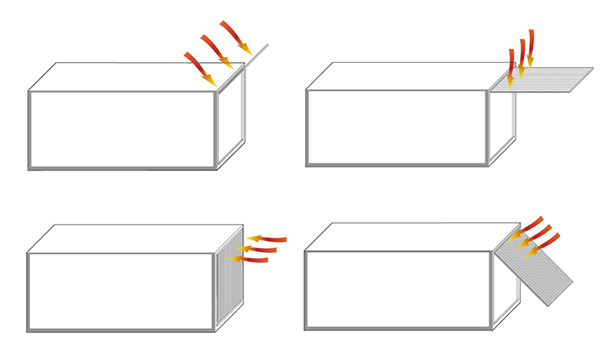

The folding wall, floor and movable space can be built in the factory and sent to the construction site using a crane.
翻折墙面,翻折楼板和可推拉空间,成为项目的3个空间可变点。在工业化不断成熟的未来,可以在工厂内完成整个集装箱箱体,吊装到现场直接拼装。
Green Space
场所精神

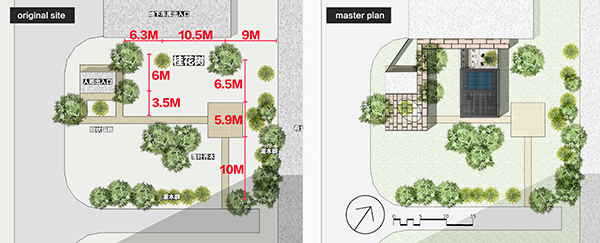

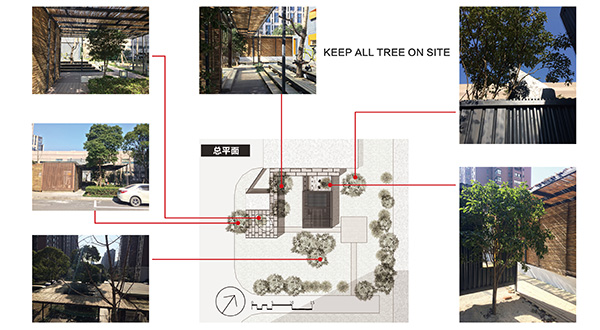

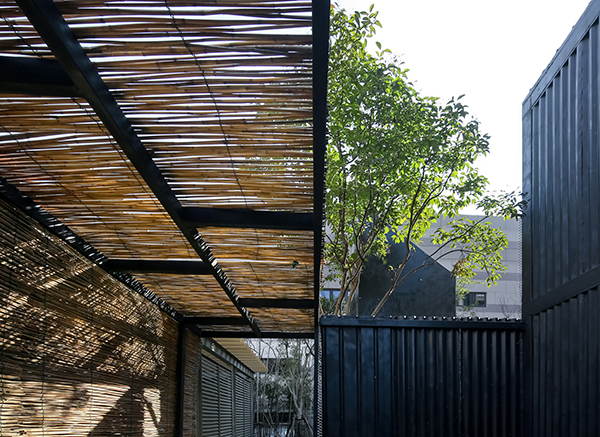

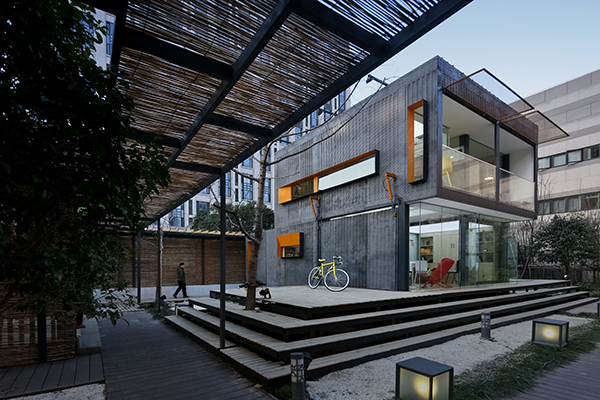

There are plenty of plants where the containers are at. The project aims to keep the plants and create a harmonious relationship between building and the original site.

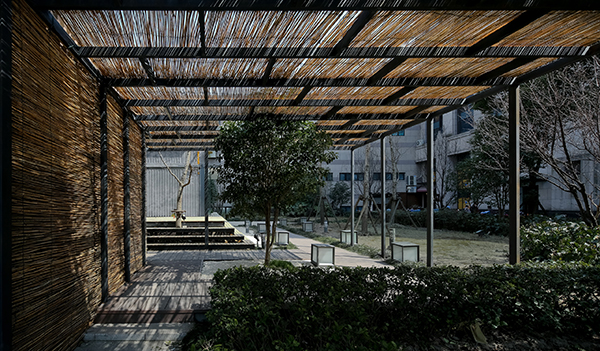

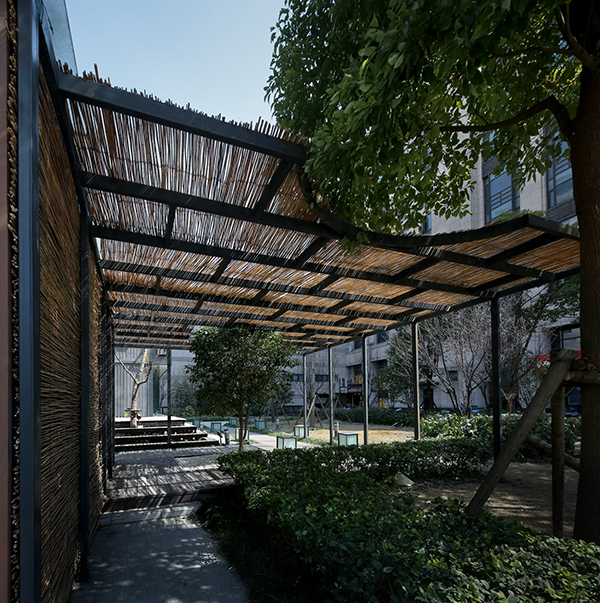

场地原有多个乔木,通过合理控制建筑与场地的关系,努力保留场地的树木,形成建筑与自然相生的特点。结合芦苇设计了围绕建筑的连廊。

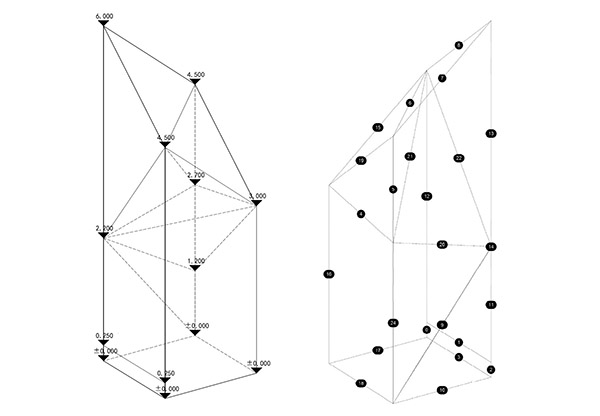

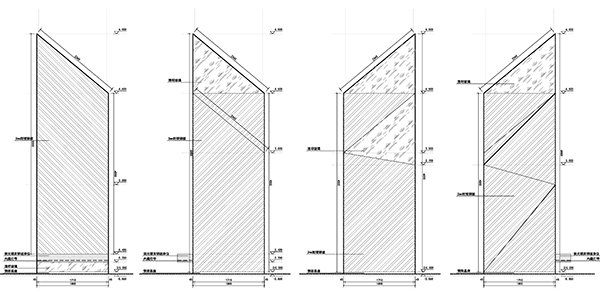

In the back yard, we have one more thing to show. This a simple tri-angled installation for meditation. It is 6 meters high in order to introduce the sunlight. Combining with mirror steel and rough steel, one can get meditative experience inside.
在建筑的后院设计了冥想空间,这是一个简单的三角斜切构筑物,结合镜面钢板与灰色钢板,将天空和树叶从6米的空中,引入其中,体验者可以站在其中思考和冥想。
Renovation of container
boxes is just the tip of iceberg for huge renovation projects for the next 10
years in China. We are trying to offer better sollutions to the living problems in China by using the
premade industrial technology.
集装箱改造只是冰山一角,我们应对的是当代中国可持续发展的痛点,面对大都市的生活压力,与年轻一代生活理念的巨大冲突,通过独一无二的设计,结合预制的工业技术,解决中国居住问题的窘境。
We are not lacking of living space, we need more innovative mind toward space renovation.
我们缺少的不是居住空间,而是对空间的创新与改造。
Design Team
设计单位
Shanghai Huadu Architecture and Planning Design Ltd. (HDD Design)
上海华都建筑规划设计有限公司
